arri
Utente Master


Regione: Lombardia


14951 Messaggi

Inserito il - 08 aprile 2011 : 08:48:45  Mostra Profilo Invia a arri un Messaggio Privato  Rispondi Quotando
CurveAlignedTextV1-1

Program Description

This program will enable the user to easily align DText, MText or Attributes to a curve, with intuitive placement controls.

The program should work in all versions of AutoCAD that have Visual LISP functions available (AutoCAD 2000 onwards). Text can be aligned to the majority of drawing objects, and is automatically rotated to always be the correct reading orientation.

Upon invoking the program, the user can either specify a new text string, or select existing text or attribute objects. After selecting a curve, the program offers several controls to aid with text placement, these are displayed at the command line.

Text can either be aligned parallel or perpendicular to the selected curve, and perpendicularity can be toggled using the 'P' key. Offset from the curve can be controlled using the +/- keys, or a manual offset may be specified by pressing 'O'. For MText objects, a background mask may also be toggled using 'B'.

P.S.
@ Terminator
precisamente

Modificato da - arri in Data 08 aprile 2011 12:49:34

Terminator
Utente Master



725 Messaggi

Inserito il - 08 aprile 2011 : 09:35:58  Mostra Profilo Invia a Terminator un Messaggio Privato  Rispondi Quotando

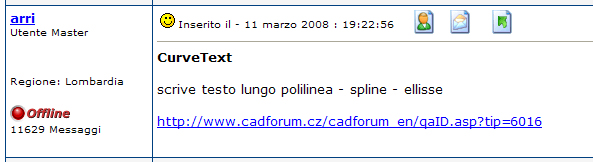

Da non confondersi con questo, i comandi sono diversi:

Immagine inserita:

84,58 KB
Sezione Cadtools, free
